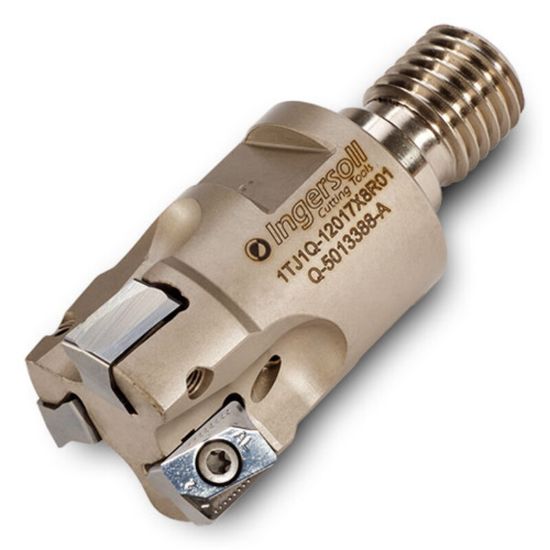

Picture of INGERSOLL 1TJ1Q-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 3 Flute Coolant 0.43 Max DOC

INGERSOLL 1TJ1Q-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 3 Flute Coolant 0.43 Max DOC

ANSI: 1TJ1Q-12017X8R01

ISO: 1TJ1Q-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031347
Delivery date: 3-5 days
$387.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.4300
Tool Material Steel
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Insert Size Ic 12
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Max Ramp Angle 1.00°
Coolant Thru Yes
