  • INGERSOLL 1TJ1Q-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.43 Max DOC 6.000 OAL

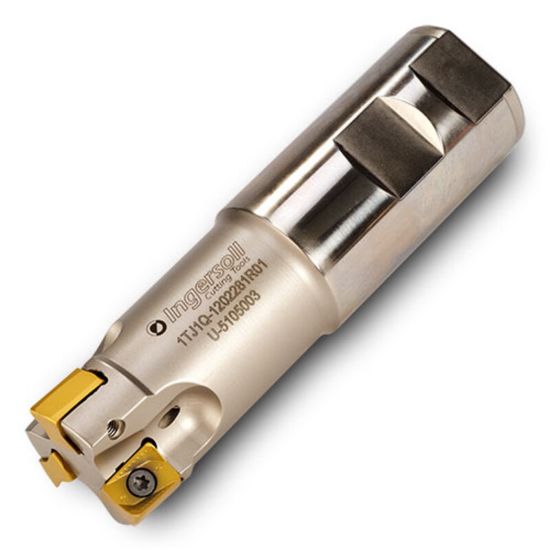

Picture of INGERSOLL 1TJ1Q-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.43 Max DOC 6.000 OAL

INGERSOLL 1TJ1Q-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.43 Max DOC 6.000 OAL

ANSI: 1TJ1Q-1003780R01

ISO: 1TJ1Q-1003780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031340
Delivery date: 3-5 days
$410.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4300
Cutter Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 12
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Max Ramp Angle 1.40°
Coolant Thru Yes
