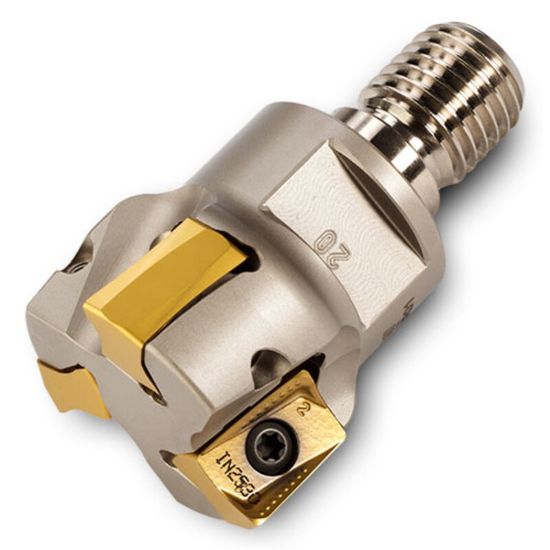

Picture of INGERSOLL 1TJ1N-12015X8R01 Milling Cutter 90.0° 1.250 Screw M16 2 Flute Coolant 0.59 Max DOC

INGERSOLL 1TJ1N-12015X8R01 Milling Cutter 90.0° 1.250 Screw M16 2 Flute Coolant 0.59 Max DOC

ANSI: 1TJ1N-12015X8R01

ISO: 1TJ1N-12015X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3025665
Delivery date: 3-5 days
$414.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Insert Size Ic 16
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Screw On
Flutes/Inserts 2
Depth Of Cut Max 0.5900
Machine Side Connection Size M16
Cutting & Machining Properties
Max Ramp Angle 1.20°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Coolant Thru Yes
