  • INGERSOLL 1TJ1D-20012S7R01 Milling Cutter 90.0°, Back Draft 2.000 Weldon 0.7500 5 Flute Coolant 0.24 Max DOC 3.250 OAL

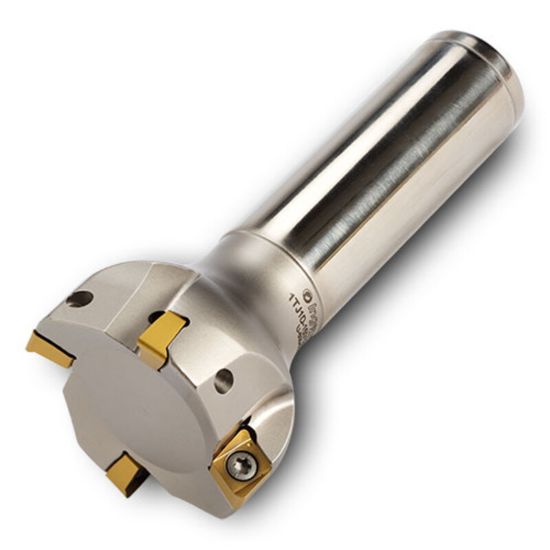

Picture of INGERSOLL 1TJ1D-20012S7R01 Milling Cutter 90.0°, Back Draft 2.000 Weldon 0.7500 5 Flute Coolant 0.24 Max DOC 3.250 OAL

INGERSOLL 1TJ1D-20012S7R01 Milling Cutter 90.0°, Back Draft 2.000 Weldon 0.7500 5 Flute Coolant 0.24 Max DOC 3.250 OAL

ANSI: 1TJ1D-20012S7R01

ISO: 1TJ1D-20012S7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916450
Delivery date: 3-5 days
$524.53

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Application Copy Milling, Feed Milling, Face Milling, Profile Milling, Ramp Milling, Slot Milling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Insert Size Ic 6
Cut Dia Min 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Depth Of Cut Max 0.2400
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 2.00°
Insert Style MN
