  • INGERSOLL 1TJ1D-15017X8R01 Milling Cutter 90.0°, Back Draft 1.500 Screw M16 6 Flute Coolant 0.24 Max DOC

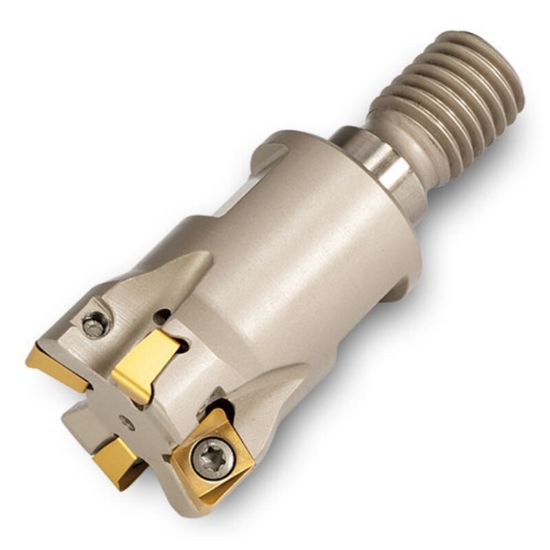

Picture of INGERSOLL 1TJ1D-15017X8R01 Milling Cutter 90.0°, Back Draft 1.500 Screw M16 6 Flute Coolant 0.24 Max DOC

INGERSOLL 1TJ1D-15017X8R01 Milling Cutter 90.0°, Back Draft 1.500 Screw M16 6 Flute Coolant 0.24 Max DOC

ANSI: 1TJ1D-15017X8R01

ISO: 1TJ1D-15017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910923
Delivery date: 3-5 days
$545.07

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Copy Milling, Feed Milling, Face Milling, Profile Milling, Ramp Milling, Slot Milling
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.2400
Tool Material Steel
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Screw On
Insert Size Ic 6
Cut Dia Min 1.5000 38.10MM - 1-1/2
Flutes/Inserts 6
Machine Side Connection Size M16
Cutting & Machining Properties
Max Ramp Angle 2.80°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MN
Coolant Thru Yes
