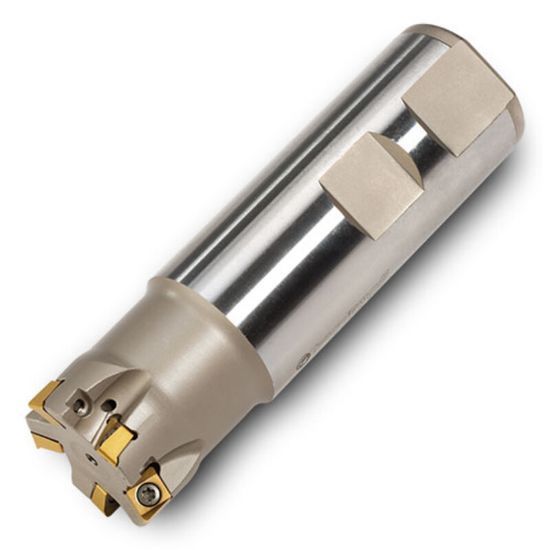

INGERSOLL 1TJ1D-1501784R01 Milling Cutter 90.0°, Back Draft 1.500 Weldon 0.7500 6 Flute Coolant 0.24 Max DOC 3.750 OAL

ANSI: 1TJ1D-1501784R01

ISO: 1TJ1D-1501784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910917
Delivery date: 3-5 days
$517.07

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Feed Milling, Profile Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Type Negative
Shipping State Illinois
Insert Application Semi Finishing, Finishing, Roughing
Made In USA No
Dimensional Specifications
Cut Dia Min 1.5000 38.10MM - 1-1/2
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2400
Tool Material Steel
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Flutes/Inserts 6
Insert Size Ic 6
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MN
Max Ramp Angle 2.80°
