  • INGERSOLL 1TJ1D-15012S7R01 Milling Cutter 90.0°, Back Draft 1.500 Weldon 0.7500 4 Flute Coolant 0.24 Max DOC 3.250 OAL

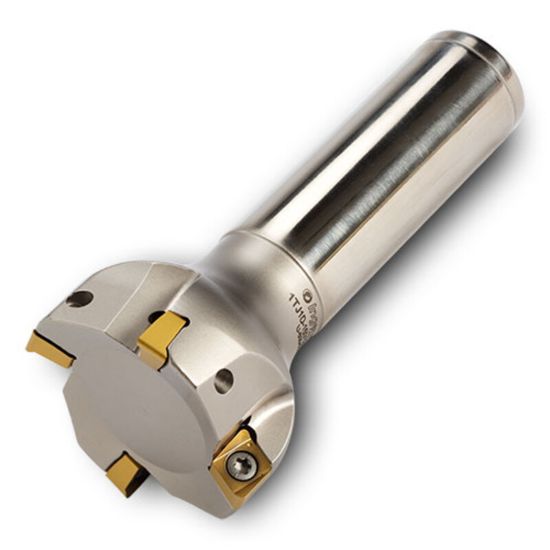

Picture of INGERSOLL 1TJ1D-15012S7R01 Milling Cutter 90.0°, Back Draft 1.500 Weldon 0.7500 4 Flute Coolant 0.24 Max DOC 3.250 OAL

INGERSOLL 1TJ1D-15012S7R01 Milling Cutter 90.0°, Back Draft 1.500 Weldon 0.7500 4 Flute Coolant 0.24 Max DOC 3.250 OAL

ANSI: 1TJ1D-15012S7R01

ISO: 1TJ1D-15012S7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916449
Delivery date: 3-5 days
$499.33

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Copy Milling, Feed Milling, Face Milling, Profile Milling, Slot Milling, Ramp Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Type Negative
Made In USA No
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Depth Of Cut Max 0.2400
Tool Material Steel
Insert Size Ic 6
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Max Ramp Angle 2.80°
Insert Style MN
