  • INGERSOLL 1TJ1D-12017X8R01 Milling Cutter 90.0°, Back Draft 1.250 Screw M16 5 Flute Coolant 0.24 Max DOC

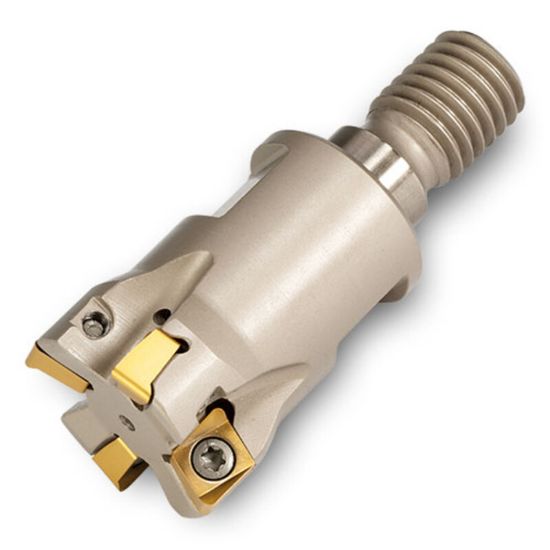

Picture of INGERSOLL 1TJ1D-12017X8R01 Milling Cutter 90.0°, Back Draft 1.250 Screw M16 5 Flute Coolant 0.24 Max DOC

INGERSOLL 1TJ1D-12017X8R01 Milling Cutter 90.0°, Back Draft 1.250 Screw M16 5 Flute Coolant 0.24 Max DOC

ANSI: 1TJ1D-12017X8R01

ISO: 1TJ1D-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910922
Delivery date: 3-5 days
$503.07

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling, Profile Milling
Insert/Tool Tool
Insert Application Semi Finishing, Finishing, Roughing
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Flutes/Inserts 5
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Size M16
Depth Of Cut Max 0.2400
Insert Size Ic 6
Machine Side Connection Type Screw On
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style MN
Max Ramp Angle 3.60°
