  • INGERSOLL 1TJ1D-1201781R01 Milling Cutter 90.0°, Back Draft 1.250 Cylindrical 1.2500 5 Flute Coolant 0.24 Max DOC 4.000 OAL

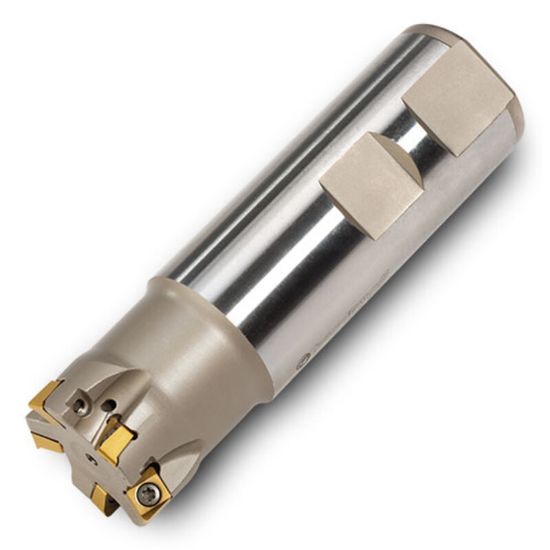

Picture of INGERSOLL 1TJ1D-1201781R01 Milling Cutter 90.0°, Back Draft 1.250 Cylindrical 1.2500 5 Flute Coolant 0.24 Max DOC 4.000 OAL

INGERSOLL 1TJ1D-1201781R01 Milling Cutter 90.0°, Back Draft 1.250 Cylindrical 1.2500 5 Flute Coolant 0.24 Max DOC 4.000 OAL

ANSI: 1TJ1D-1201781R01

ISO: 1TJ1D-1201781R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910915
Delivery date: 3-5 days
$472.27

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ramp Milling, Face Milling, Profile Milling, Slot Milling, Feed Milling
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.2400
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 5
Insert Size Ic 6
Cut Dia Min 1.2500 31.75MM - 1-1/4
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Style MN
Coolant Thru Yes
Max Ramp Angle 3.60°
Insert Shape/Cutter Pocket Shape Parallelogram
