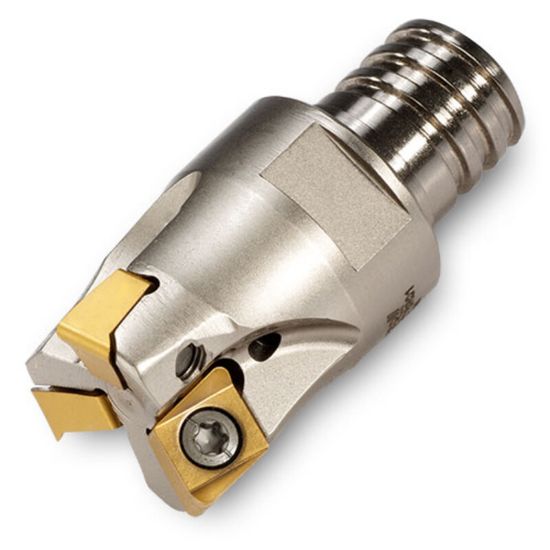

Picture of INGERSOLL 1TJ1D-10012TUR01 Milling Cutter 90.0°, Back Draft 1.000 T15 4 Flute Coolant 0.24 Max DOC

INGERSOLL 1TJ1D-10012TUR01 Milling Cutter 90.0°, Back Draft 1.000 T15 4 Flute Coolant 0.24 Max DOC

ANSI: 1TJ1D-10012TUR01

ISO: 1TJ1D-10012TUR01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910926
Delivery date: 3-5 days
$421.87

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling, Profile Milling
Insert Application Semi Finishing, Roughing, Finishing
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Screw On
Depth Of Cut Max 0.2400
Cutter Dia 1.0000 25.40MM
Insert Size Ic 6
Machine Side Connection Size T15
Flutes/Inserts 4
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MN
Max Ramp Angle 4.80°
Coolant Thru Yes
