  • INGERSOLL 1TJ1D-10012S7R01 Milling Cutter 90.0°, Back Draft 1.000 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 3.250 OAL

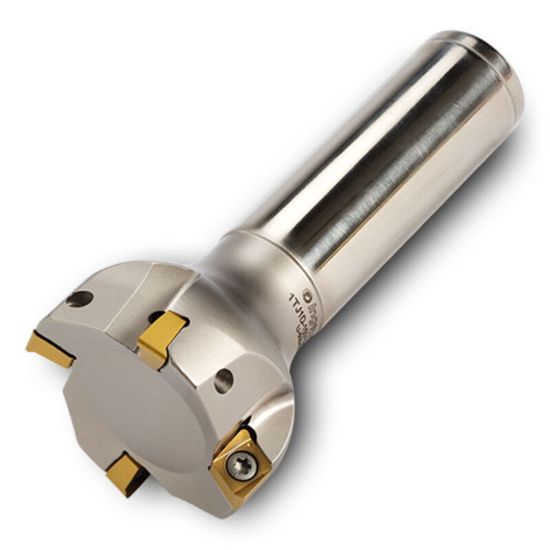

Picture of INGERSOLL 1TJ1D-10012S7R01 Milling Cutter 90.0°, Back Draft 1.000 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 3.250 OAL

INGERSOLL 1TJ1D-10012S7R01 Milling Cutter 90.0°, Back Draft 1.000 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 3.250 OAL

ANSI: 1TJ1D-10012S7R01

ISO: 1TJ1D-10012S7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916448
Delivery date: 3-5 days
$421.87

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Application Face Milling, Profile Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.2400
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 6
Flutes/Inserts 3
Cutting & Machining Properties
Max Ramp Angle 4.80°
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style MN
