  • INGERSOLL 1TJ1D-0801284R01 Milling Cutter 90.0°, Back Draft 0.875 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 3.250 OAL

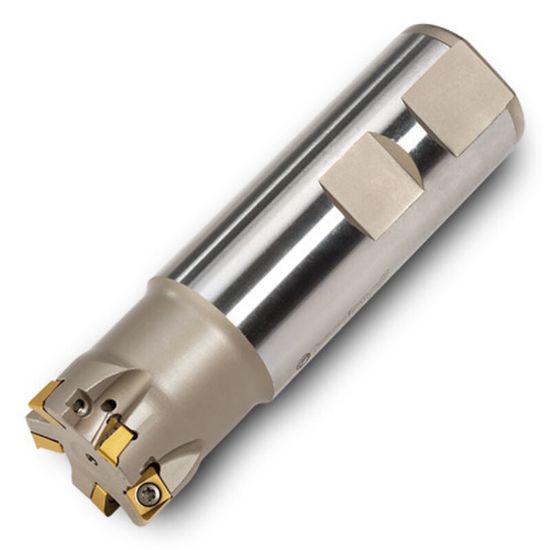

Picture of INGERSOLL 1TJ1D-0801284R01 Milling Cutter 90.0°, Back Draft 0.875 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 3.250 OAL

INGERSOLL 1TJ1D-0801284R01 Milling Cutter 90.0°, Back Draft 0.875 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 3.250 OAL

ANSI: 1TJ1D-0801284R01

ISO: 1TJ1D-0801284R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2916447
Delivery date: 3-5 days
$385.47

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Roughing, Finishing, Semi Finishing
Application Face Milling, Profile Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.2400
Flutes/Inserts 3
Insert Size Ic 6
Cut Dia Min 0.8750 22.23MM - 7/8
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Machine Side Connection Type Weldon
Cutter Dia 0.8750 22.23MM - 7/8
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Max Ramp Angle 5.00°
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
