  • INGERSOLL 1TJ1D-07030S7R01 Milling Cutter 90.0°, Back Draft 0.750 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 5.000 OAL

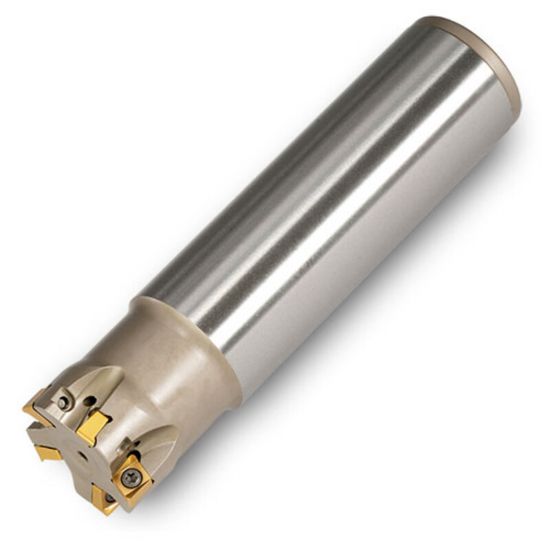

Picture of INGERSOLL 1TJ1D-07030S7R01 Milling Cutter 90.0°, Back Draft 0.750 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 5.000 OAL

INGERSOLL 1TJ1D-07030S7R01 Milling Cutter 90.0°, Back Draft 0.750 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 5.000 OAL

ANSI: 1TJ1D-07030S7R01

ISO: 1TJ1D-07030S7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910910
Delivery date: 3-5 days
$344.40

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Application Face Milling, Profile Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Insert Size Ic 6
Depth Of Cut Max 0.2400
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 4.10°
Coolant Thru Yes
Insert Style MN
