  • INGERSOLL 1TJ1D-07015X6R01 Milling Cutter 90.0°, Back Draft 0.750 Screw M10 3 Flute Coolant 0.24 Max DOC

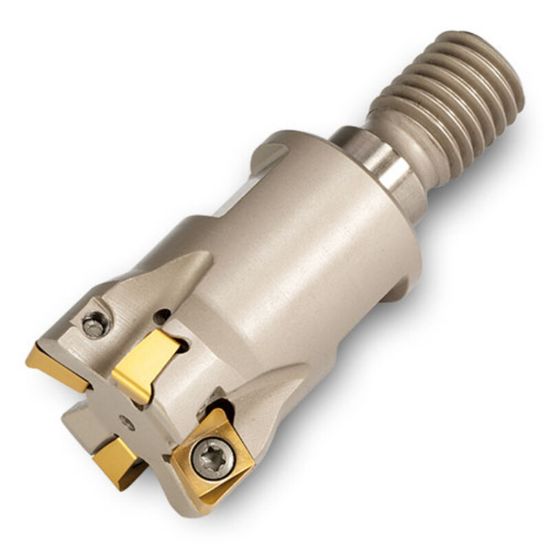

Picture of INGERSOLL 1TJ1D-07015X6R01 Milling Cutter 90.0°, Back Draft 0.750 Screw M10 3 Flute Coolant 0.24 Max DOC

INGERSOLL 1TJ1D-07015X6R01 Milling Cutter 90.0°, Back Draft 0.750 Screw M10 3 Flute Coolant 0.24 Max DOC

ANSI: 1TJ1D-07015X6R01

ISO: 1TJ1D-07015X6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910920
Delivery date: 3-5 days
$361.20

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Ramp Milling, Profile Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 6
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Machine Side Connection Size M10
Machine Side Connection Type Screw On
Depth Of Cut Max 0.2400
Tool Material Steel
Cut Dia Min 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Max Ramp Angle 4.10°
Coolant Thru Yes
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
