  • INGERSOLL 1TJ1D-0701284R01 Milling Cutter 90.0°, Back Draft 0.750 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 3.250 OAL

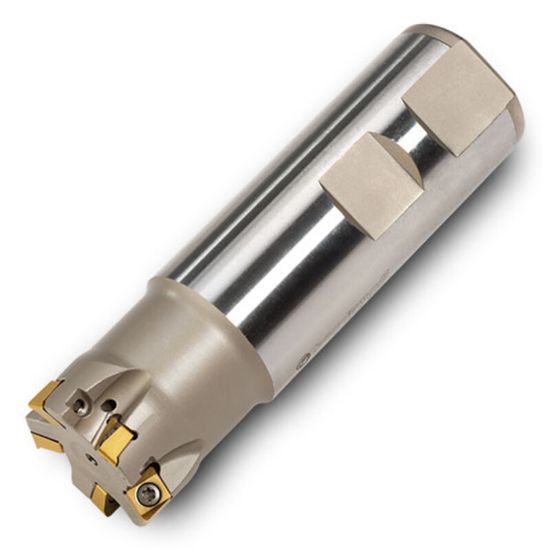

Picture of INGERSOLL 1TJ1D-0701284R01 Milling Cutter 90.0°, Back Draft 0.750 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 3.250 OAL

INGERSOLL 1TJ1D-0701284R01 Milling Cutter 90.0°, Back Draft 0.750 Weldon 0.7500 3 Flute Coolant 0.24 Max DOC 3.250 OAL

ANSI: 1TJ1D-0701284R01

ISO: 1TJ1D-0701284R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910909
Delivery date: 3-5 days
$341.60

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Finishing, Semi Finishing, Roughing
Application Face Milling, Profile Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.2400
Tool Material Steel
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Flutes/Inserts 3
Insert Size Ic 6
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MN
Max Ramp Angle 4.10°
Coolant Thru Yes
