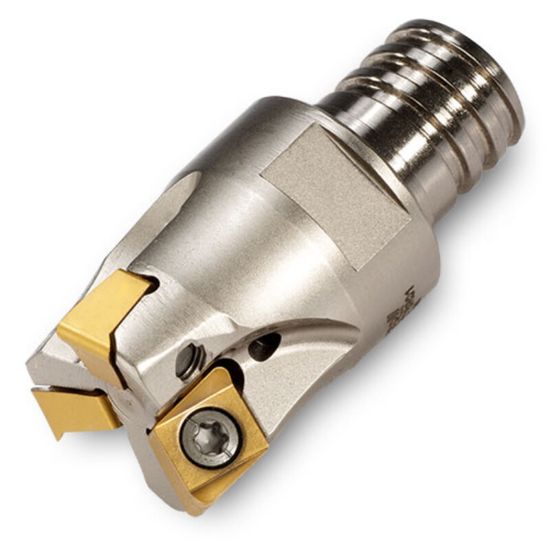

Picture of INGERSOLL 1TJ1D-07010TSR01 Milling Cutter 90.0°, Back Draft 0.750 T12 3 Flute Coolant 0.24 Max DOC

INGERSOLL 1TJ1D-07010TSR01 Milling Cutter 90.0°, Back Draft 0.750 T12 3 Flute Coolant 0.24 Max DOC

ANSI: 1TJ1D-07010TSR01

ISO: 1TJ1D-07010TSR01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910925
Delivery date: 3-5 days
$361.20

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Application Face Milling, Copy Milling, Feed Milling, Profile Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size T12
Machine Side Connection Type Screw On
Insert Size Ic 6
Cut Dia Min 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Depth Of Cut Max 0.2400
Tool Material Steel
Cutting & Machining Properties
Max Ramp Angle 4.10°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MN
