  • INGERSOLL 1TJ1D-06020S6R01 Milling Cutter 90.0°, Back Draft 0.625 Cylindrical 0.6250 2 Flute Coolant 0.24 Max DOC 4.000 OAL

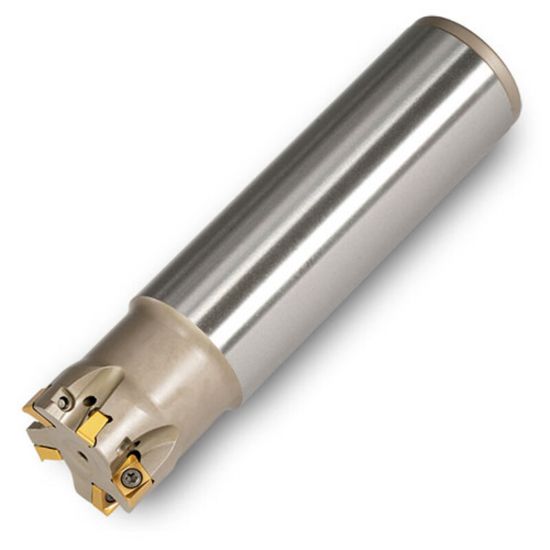

Picture of INGERSOLL 1TJ1D-06020S6R01 Milling Cutter 90.0°, Back Draft 0.625 Cylindrical 0.6250 2 Flute Coolant 0.24 Max DOC 4.000 OAL

INGERSOLL 1TJ1D-06020S6R01 Milling Cutter 90.0°, Back Draft 0.625 Cylindrical 0.6250 2 Flute Coolant 0.24 Max DOC 4.000 OAL

ANSI: 1TJ1D-06020S6R01

ISO: 1TJ1D-06020S6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910908
Delivery date: 3-5 days
$302.40

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Application Profile Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.0000 101.60MM
Insert Size Ic 6
Flutes/Inserts 2
Depth Of Cut Max 0.2400
Tool Material Steel
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Max Ramp Angle 3.10°
Insert Style MN
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
