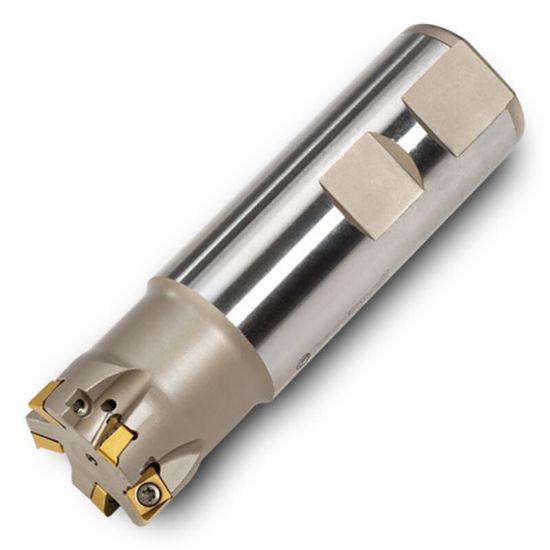

INGERSOLL 1TJ1D-0600779R01 Milling Cutter 90.0°, Back Draft 0.625 Cylindrical 0.6250 2 Flute Coolant 0.24 Max DOC 2.660 OAL

ANSI: 1TJ1D-0600779R01

ISO: 1TJ1D-0600779R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910907
Delivery date: 3-5 days
$299.60

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Feed Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Package Size 1
Insert Application Semi Finishing, Roughing, Finishing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cut Dia Min 0.6250 15.88MM - 5/8
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 2.6600 67.56MM
Insert Size Ic 6
Depth Of Cut Max 0.2400
Tool Material Steel
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 3.10°
Coolant Thru Yes
Insert Style MN
