  • INGERSOLL 1TJ1C-20007S6R01 Milling Cutter 90.0°, Back Draft 2.000 Cylindrical 0.6250 7 Flute 0.18 Max DOC 1.750 OAL

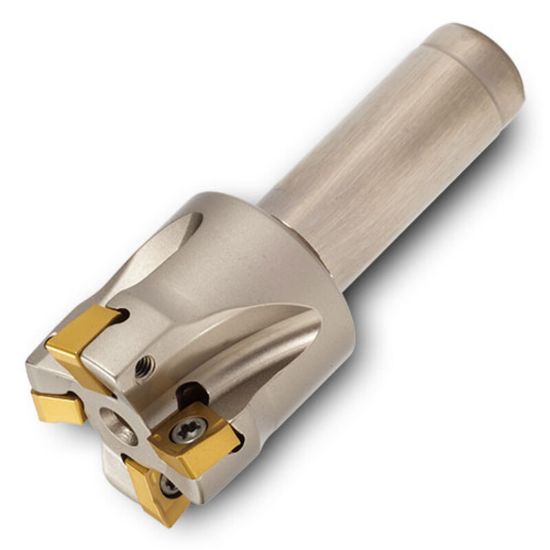

Picture of INGERSOLL 1TJ1C-20007S6R01 Milling Cutter 90.0°, Back Draft 2.000 Cylindrical 0.6250 7 Flute 0.18 Max DOC 1.750 OAL

INGERSOLL 1TJ1C-20007S6R01 Milling Cutter 90.0°, Back Draft 2.000 Cylindrical 0.6250 7 Flute 0.18 Max DOC 1.750 OAL

ANSI: 1TJ1C-20007S6R01

ISO: 1TJ1C-20007S6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915012
Delivery date: 3-5 days
$527.33

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Profile Milling, Slot Milling, Ramp Milling, Face Milling, Copy Milling, Feed Milling
Made In USA No
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.1800
Cut Dia Min 2.0000 50.80MM
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Size 0.6250 15.88MM
Overall Len 1.7500 44.45MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 7
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Max Ramp Angle 0.90°
Insert Style EN
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
