  • INGERSOLL 1TJ1C-15007S4R01 Milling Cutter 90.0°, Back Draft 1.500 Cylindrical 0.5000 7 Flute 0.18 Max DOC 1.750 OAL

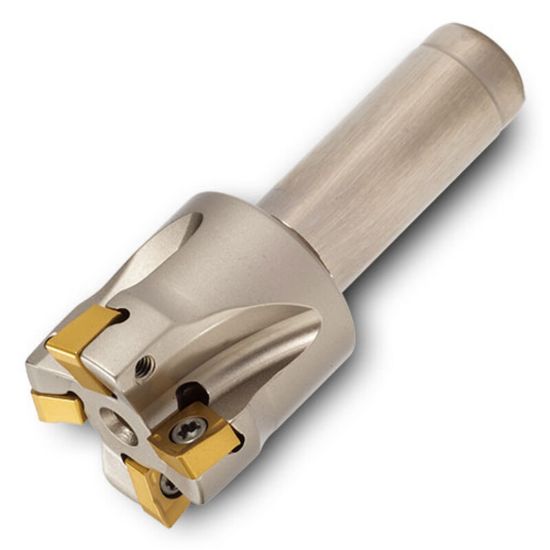

Picture of INGERSOLL 1TJ1C-15007S4R01 Milling Cutter 90.0°, Back Draft 1.500 Cylindrical 0.5000 7 Flute 0.18 Max DOC 1.750 OAL

INGERSOLL 1TJ1C-15007S4R01 Milling Cutter 90.0°, Back Draft 1.500 Cylindrical 0.5000 7 Flute 0.18 Max DOC 1.750 OAL

ANSI: 1TJ1C-15007S4R01

ISO: 1TJ1C-15007S4R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915011
Delivery date: 3-5 days
$501.20

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling, Feed Milling
Package Size 1
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.1800
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Dia Min 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 0.5000 12.70MM
Flutes/Inserts 7
Insert Size Ic 5
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Insert Style EN
Max Ramp Angle 1.30°
Insert Shape/Cutter Pocket Shape Parallelogram
