  • INGERSOLL 1TJ1C-10037S1R01 Milling Cutter 90.0°, Back Draft 1.000 Cylindrical 1.0000 5 Flute Coolant 0.18 Max DOC 6.000 OAL

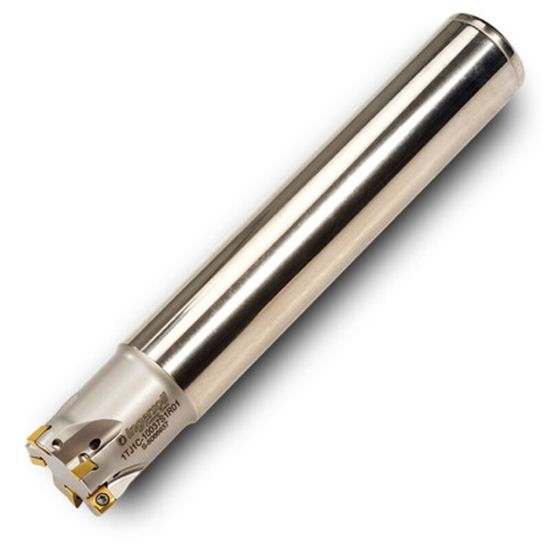

Picture of INGERSOLL 1TJ1C-10037S1R01 Milling Cutter 90.0°, Back Draft 1.000 Cylindrical 1.0000 5 Flute Coolant 0.18 Max DOC 6.000 OAL

INGERSOLL 1TJ1C-10037S1R01 Milling Cutter 90.0°, Back Draft 1.000 Cylindrical 1.0000 5 Flute Coolant 0.18 Max DOC 6.000 OAL

ANSI: 1TJ1C-10037S1R01

ISO: 1TJ1C-10037S1R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910945
Delivery date: 3-5 days
$385.47

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling, Profile Milling
Insert Type Negative
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 5
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.1800
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 2.20°
