  • INGERSOLL 1TJ1C-10015X7R01 Milling Cutter 90.0°, Back Draft 1.000 Screw M12 5 Flute Coolant 0.18 Max DOC

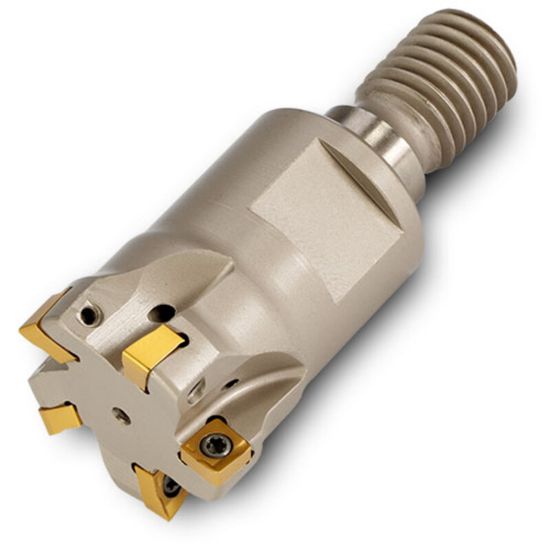

Picture of INGERSOLL 1TJ1C-10015X7R01 Milling Cutter 90.0°, Back Draft 1.000 Screw M12 5 Flute Coolant 0.18 Max DOC

INGERSOLL 1TJ1C-10015X7R01 Milling Cutter 90.0°, Back Draft 1.000 Screw M12 5 Flute Coolant 0.18 Max DOC

ANSI: 1TJ1C-10015X7R01

ISO: 1TJ1C-10015X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910949
Delivery date: 3-5 days
$385.47

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Face Milling, Copy Milling, Feed Milling, Profile Milling, Slot Milling, Ramp Milling
Package Size 1
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 5
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.1800
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 5
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style EN
Max Ramp Angle 2.10°
Coolant Thru Yes
