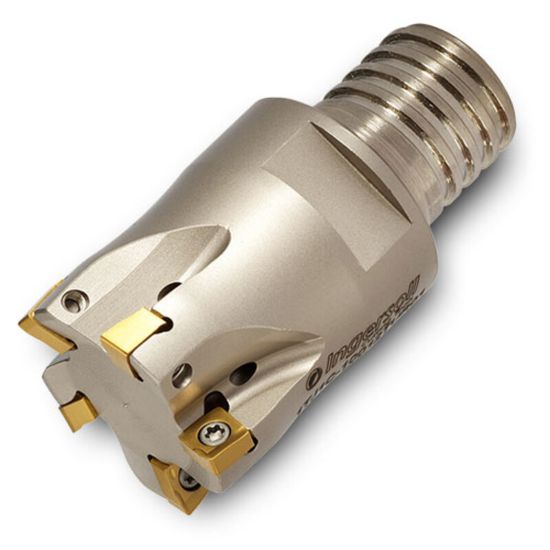

Picture of INGERSOLL 1TJ1C-10012TUR01 Milling Cutter 90.0°, Back Draft 1.000 T15 5 Flute Coolant 0.18 Max DOC

INGERSOLL 1TJ1C-10012TUR01 Milling Cutter 90.0°, Back Draft 1.000 T15 5 Flute Coolant 0.18 Max DOC

ANSI: 1TJ1C-10012TUR01

ISO: 1TJ1C-10012TUR01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910953
Delivery date: 3-5 days
$385.47

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Profile Milling, Slot Milling, Ramp Milling, Face Milling, Copy Milling, Feed Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Depth Of Cut Max 0.1800
Machine Side Connection Type Screw On
Machine Side Connection Size T15
Insert Size Ic 5
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Insert Style EN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 2.20°
