  • INGERSOLL 1TJ1C-1000777R01 Milling Cutter 90.0°, Back Draft 1.000 Cylindrical 0.3750 5 Flute 0.18 Max DOC 1.750 OAL

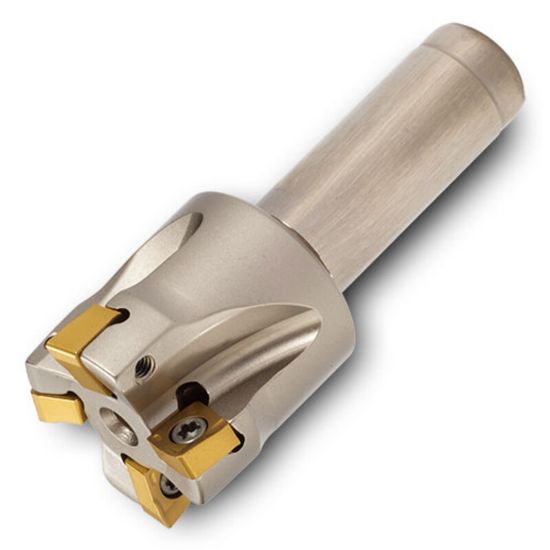

Picture of INGERSOLL 1TJ1C-1000777R01 Milling Cutter 90.0°, Back Draft 1.000 Cylindrical 0.3750 5 Flute 0.18 Max DOC 1.750 OAL

INGERSOLL 1TJ1C-1000777R01 Milling Cutter 90.0°, Back Draft 1.000 Cylindrical 0.3750 5 Flute 0.18 Max DOC 1.750 OAL

ANSI: 1TJ1C-1000777R01

ISO: 1TJ1C-1000777R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915010
Delivery date: 3-5 days
$397.60

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Profile Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 5
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.1800
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Machine Side Connection Type Cylindrical
Insert Size Ic 5
Cutter Dia 1.0000 25.40MM
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Coolant Thru No
Inter/Extern External
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Max Ramp Angle 2.20°
