  • INGERSOLL 1TJ1C-07015X6R01 Milling Cutter 90.0°, Back Draft 0.750 Screw M10 4 Flute Coolant 0.18 Max DOC

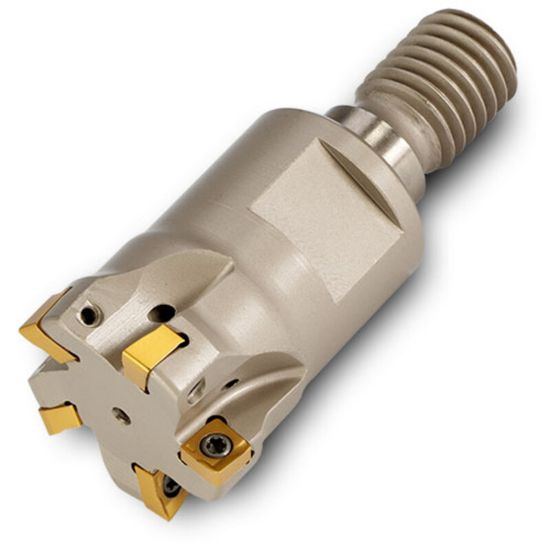

Picture of INGERSOLL 1TJ1C-07015X6R01 Milling Cutter 90.0°, Back Draft 0.750 Screw M10 4 Flute Coolant 0.18 Max DOC

INGERSOLL 1TJ1C-07015X6R01 Milling Cutter 90.0°, Back Draft 0.750 Screw M10 4 Flute Coolant 0.18 Max DOC

ANSI: 1TJ1C-07015X6R01

ISO: 1TJ1C-07015X6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910948
Delivery date: 3-5 days
$345.33

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ramp Milling, Face Milling, Profile Milling, Slot Milling, Feed Milling
Insert Type Negative
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Insert Size Ic 5
Tool Material Steel
Cut Dia Min 0.7500 19.05MM - 3/4
Machine Side Connection Size M10
Flutes/Inserts 4
Depth Of Cut Max 0.1800
Cutter Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Max Ramp Angle 3.30°
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style EN
Coolant Thru Yes
