  • INGERSOLL 1TJ1C-0700777R01 Milling Cutter 90.0°, Back Draft 0.750 Cylindrical 0.3750 4 Flute 0.18 Max DOC 1.750 OAL

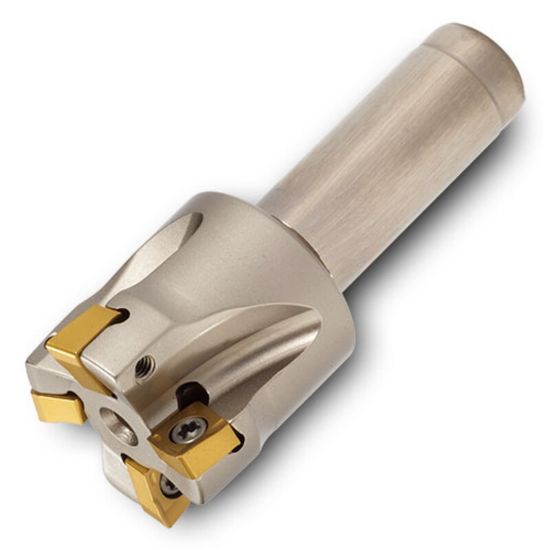

Picture of INGERSOLL 1TJ1C-0700777R01 Milling Cutter 90.0°, Back Draft 0.750 Cylindrical 0.3750 4 Flute 0.18 Max DOC 1.750 OAL

INGERSOLL 1TJ1C-0700777R01 Milling Cutter 90.0°, Back Draft 0.750 Cylindrical 0.3750 4 Flute 0.18 Max DOC 1.750 OAL

ANSI: 1TJ1C-0700777R01

ISO: 1TJ1C-0700777R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2915009
Delivery date: 3-5 days
$350.00

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Application Copy Milling, Feed Milling, Face Milling, Profile Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Depth Of Cut Max 0.1800
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Machine Side Connection Type Cylindrical
Overall Len 1.7500 44.45MM
Cut Dia Min 0.7500 19.05MM - 3/4
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Coolant Thru No
Insert Style EN
Insert Shape/Cutter Pocket Shape Parallelogram
Inter/Extern External
Max Ramp Angle 3.30°
