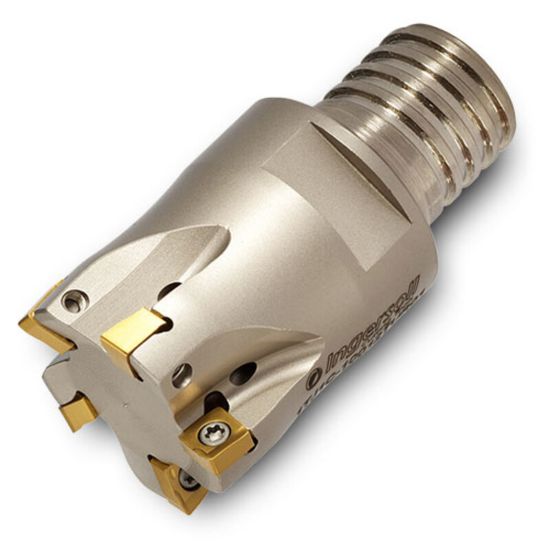

Picture of INGERSOLL 1TJ1C-05006T8R01 Milling Cutter 90.0°, Back Draft 0.500 T08 2 Flute Coolant 0.18 Max DOC

INGERSOLL 1TJ1C-05006T8R01 Milling Cutter 90.0°, Back Draft 0.500 T08 2 Flute Coolant 0.18 Max DOC

ANSI: 1TJ1C-05006T8R01

ISO: 1TJ1C-05006T8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2910950
Delivery date: 3-5 days
$264.13

File Downloads

DXFSTPSTPL

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Feed Milling, Profile Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Insert Type Negative
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 2
Insert Size Ic 5
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.1800
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Cutting & Machining Properties
Max Ramp Angle 6.90°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style EN
