  • INGERSOLL 1TG1G025070T5R01 Milling Cutter 0.984 Cylindrical 0.9843 3 Flute Coolant 0.06 Max DOC 5.905 OAL

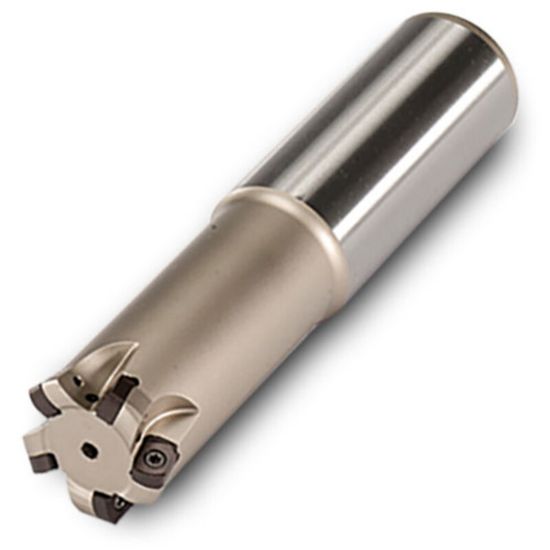

Picture of INGERSOLL 1TG1G025070T5R01 Milling Cutter 0.984 Cylindrical 0.9843 3 Flute Coolant 0.06 Max DOC 5.905 OAL

INGERSOLL 1TG1G025070T5R01 Milling Cutter 0.984 Cylindrical 0.9843 3 Flute Coolant 0.06 Max DOC 5.905 OAL

ANSI: 1TG1G025070T5R01

ISO: 1TG1G025070T5R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3112326
Delivery date: 3-5 days
$388.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Application Copy Milling, Face Milling, Slot Milling, Feed Milling, Ramp Milling
Insert Type Negative
Insert Application Roughing
Made In USA No
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.0600
Cut Dia Min 0.5790 14.71MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Cutter Dia 0.9840 24.99MM
Insert Size Ic 6
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cut Dia Max 0.0984 2.50MM
Machine Side Connection Type Cylindrical
Overall Len 5.9055 150.00MM
Flutes/Inserts 3
Cutting & Machining Properties
Max Ramp Angle 2.00°
Insert Style UN
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
