  • INGERSOLL 1TG1F016030T3R00 Milling Cutter 0.630 Cylindrical 0.7874 2 Flute Coolant 0.027 Max DOC 3.937 OAL

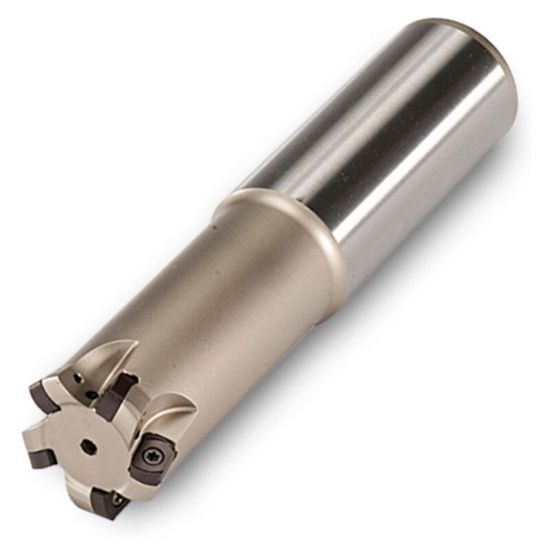

Picture of INGERSOLL 1TG1F016030T3R00 Milling Cutter 0.630 Cylindrical 0.7874 2 Flute Coolant 0.027 Max DOC 3.937 OAL

INGERSOLL 1TG1F016030T3R00 Milling Cutter 0.630 Cylindrical 0.7874 2 Flute Coolant 0.027 Max DOC 3.937 OAL

ANSI: 1TG1F016030T3R00

ISO: 1TG1F016030T3R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029796
Delivery date: 3-5 days
$336.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing
Made In USA No
Application Copy Milling, Feed Milling, Ramp Milling, Face Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 6
Cutter Dia 0.6300 16.00MM
Overall Len 3.9370 100.00MM
Cut Dia Min 0.3700 9.40MM
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7874 20.00MM
Flutes/Inserts 2
Depth Of Cut Max 0.0270
Shank/Pilot Dia 0.7874 20.00MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style UN
Max Ramp Angle 1.50°
