  • INGERSOLL 1TG1F-07032S7R01 Milling Cutter 0.750 Weldon 0.7500 3 Flute Coolant 0.032 Max DOC 6.230 OAL

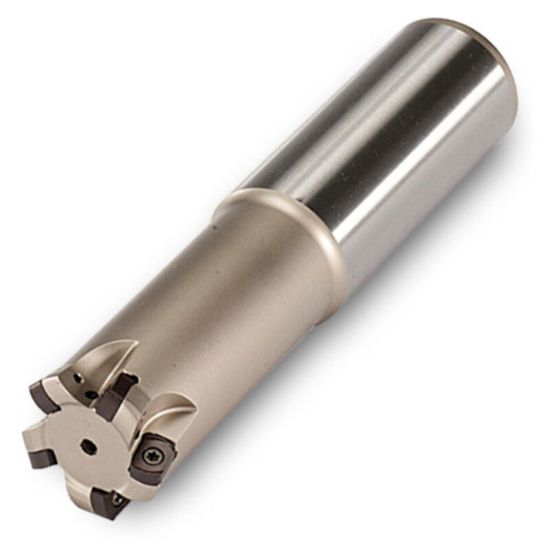

Picture of INGERSOLL 1TG1F-07032S7R01 Milling Cutter 0.750 Weldon 0.7500 3 Flute Coolant 0.032 Max DOC 6.230 OAL

INGERSOLL 1TG1F-07032S7R01 Milling Cutter 0.750 Weldon 0.7500 3 Flute Coolant 0.032 Max DOC 6.230 OAL

ANSI: 1TG1F-07032S7R01

ISO: 1TG1F-07032S7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3029340
Delivery date: 3-5 days
$364.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Package Size 1
Insert Type Negative
Shipping State Illinois
Insert Application Roughing
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.0320
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.2300 158.24MM
Cut Dia Max 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Insert Size Ic 6
Cut Dia Min 0.4760 12.09MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style UN
Max Ramp Angle 1.45°
