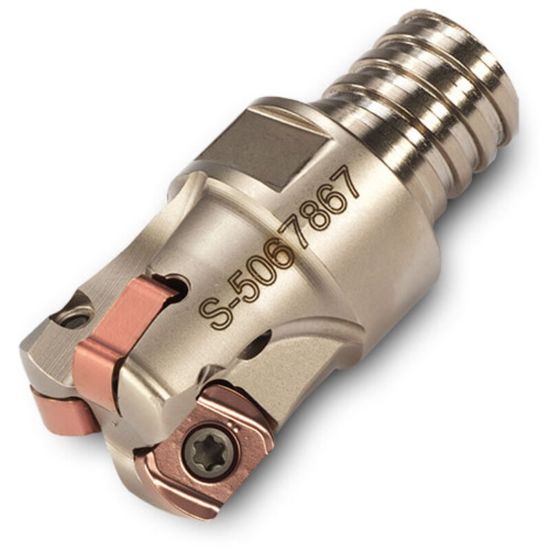

Picture of INGERSOLL 1TG1F-06008TRR01 Milling Cutter 0.625 T10 2 Flute Coolant 0.028 Max DOC

INGERSOLL 1TG1F-06008TRR01 Milling Cutter 0.625 T10 2 Flute Coolant 0.028 Max DOC

ANSI: 1TG1F-06008TRR01

ISO: 1TG1F-06008TRR01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030487
Delivery date: 3-5 days
$350.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Application Feed Milling, Copy Milling, Face Milling, Slot Milling, Ramp Milling
Insert Type Negative
Insert Application Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Insert Size Ic 6
Machine Side Connection Size T10
Flutes/Inserts 2
Cut Dia Min 0.3650 9.27MM
Machine Side Connection Type Screw On
Cutter Dia 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.0280
Cutting & Machining Properties
Insert Style UN
Max Ramp Angle 1.55°
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
