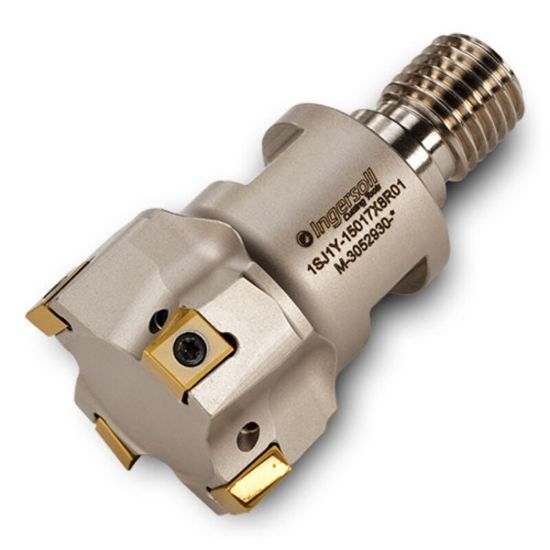

Picture of INGERSOLL 1SJ1Y-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 2 Flute Coolant 0.31 Max DOC

INGERSOLL 1SJ1Y-07015X6R01 Milling Cutter 90.0° 0.750 Screw M10 2 Flute Coolant 0.31 Max DOC

ANSI: 1SJ1Y-07015X6R01

ISO: 1SJ1Y-07015X6R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030110
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3100
Machine Side Connection Size M10
Insert Size Ic 21
Machine Side Connection Type Screw On
Cutting & Machining Properties
Insert Style DG
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Rectagonal
