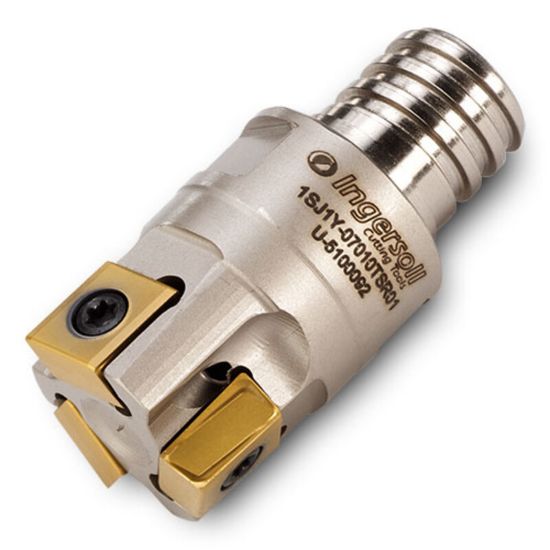

Picture of INGERSOLL 1SJ1Y-07010TSR01 Milling Cutter 90.0° 0.750 T12 3 Flute Coolant 0.31 Max DOC

INGERSOLL 1SJ1Y-07010TSR01 Milling Cutter 90.0° 0.750 T12 3 Flute Coolant 0.31 Max DOC

ANSI: 1SJ1Y-07010TSR01

ISO: 1SJ1Y-07010TSR01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030101
Delivery date: 3-5 days
$356.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Package Size 1
Application Face Milling, Side Milling
Dimensional Specifications
Tool Material Steel
Insert Size Ic 21
Machine Side Connection Type Screw On
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.3100
Machine Side Connection Size T12
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style DG
Insert Shape/Cutter Pocket Shape Rectagonal
Coolant Thru Yes
