  • INGERSOLL 1SJ1F-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.42 Max DOC 6.000 OAL

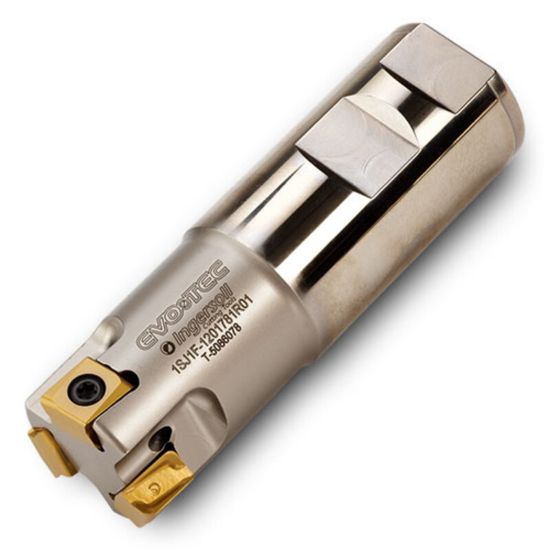

Picture of INGERSOLL 1SJ1F-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.42 Max DOC 6.000 OAL

INGERSOLL 1SJ1F-1003780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 2 Flute Coolant 0.42 Max DOC 6.000 OAL

ANSI: 1SJ1F-1003780R01

ISO: 1SJ1F-1003780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3030467
Delivery date: 3-5 days
$398.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Side Milling, Face Milling
Package Size 1
Dimensional Specifications
Insert Size Ic 31
Flutes/Inserts 2
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.4200
Overall Len 6.0000 152.40MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style DG
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Rectagonal
