  • INGERSOLL 1KJ1P-2002281R01 Milling Cutter 90.0° 2.000 Cylindrical 1.2500 4 Flute Coolant 0.57 Max DOC 4.500 OAL

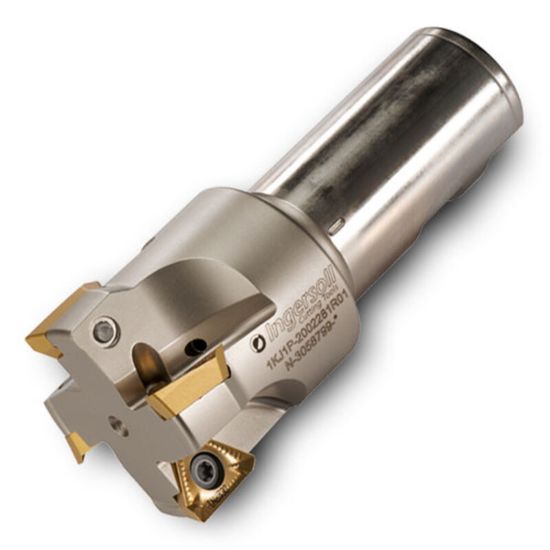

Picture of INGERSOLL 1KJ1P-2002281R01 Milling Cutter 90.0° 2.000 Cylindrical 1.2500 4 Flute Coolant 0.57 Max DOC 4.500 OAL

INGERSOLL 1KJ1P-2002281R01 Milling Cutter 90.0° 2.000 Cylindrical 1.2500 4 Flute Coolant 0.57 Max DOC 4.500 OAL

ANSI: 1KJ1P-2002281R01

ISO: 1KJ1P-2002281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031454
Delivery date: 3-5 days
$386.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Package Size 1
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Insert/Tool Tool
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 4
Cut Dia Min 2.0000 50.80MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Tool Material Steel
Insert Size Ic 13
Depth Of Cut Max 0.5700
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style TH
Max Ramp Angle 1.50°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
