  • INGERSOLL 1KJ1G032040W6R00 Milling Cutter 90.0° 1.260 Cylindrical 1.2598 3 Flute Coolant 0.4331 Max DOC 4.330 OAL

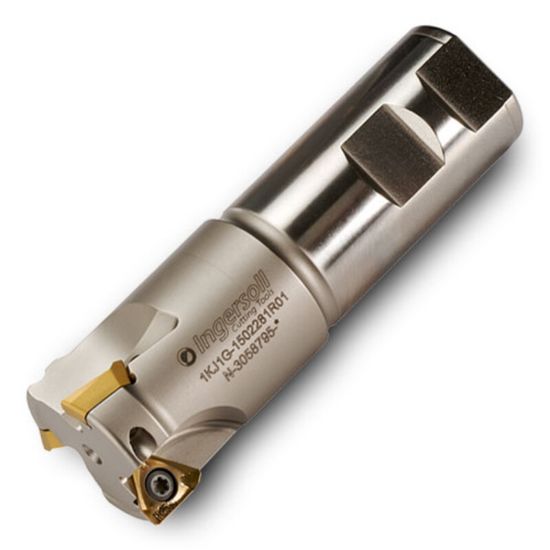

Picture of INGERSOLL 1KJ1G032040W6R00 Milling Cutter 90.0° 1.260 Cylindrical 1.2598 3 Flute Coolant 0.4331 Max DOC 4.330 OAL

INGERSOLL 1KJ1G032040W6R00 Milling Cutter 90.0° 1.260 Cylindrical 1.2598 3 Flute Coolant 0.4331 Max DOC 4.330 OAL

ANSI: 1KJ1G032040W6R00

ISO: 1KJ1G032040W6R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031303
Delivery date: 3-5 days
$490.93
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Ramp Milling, Side Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Roughing, Finishing
Made In USA No
Insert Type Positive
Dimensional Specifications
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 4.3307 110.00MM
Depth Of Cut Max 0.4331
Tool Material Steel
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Cutter Dia 1.2600 32.00MM
Insert Size Ic 10
Flutes/Inserts 3
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Style TH
Coolant Thru Yes
Max Ramp Angle 3.00°
Insert Shape/Cutter Pocket Shape Triangle
