  • INGERSOLL 1KJ1G-2002281R01 Milling Cutter 90.0° 2.000 Cylindrical 1.2500 5 Flute Coolant 0.433 Max DOC 4.500 OAL

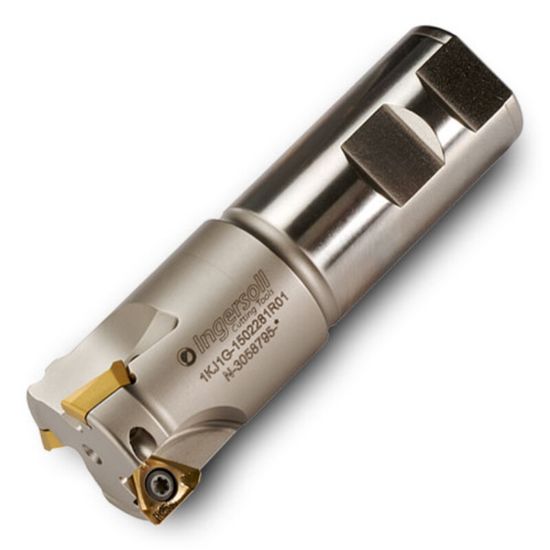

Picture of INGERSOLL 1KJ1G-2002281R01 Milling Cutter 90.0° 2.000 Cylindrical 1.2500 5 Flute Coolant 0.433 Max DOC 4.500 OAL

INGERSOLL 1KJ1G-2002281R01 Milling Cutter 90.0° 2.000 Cylindrical 1.2500 5 Flute Coolant 0.433 Max DOC 4.500 OAL

ANSI: 1KJ1G-2002281R01

ISO: 1KJ1G-2002281R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031405
Delivery date: 3-5 days
$485.33

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Cut Dia Min 2.0000 50.80MM
Overall Len 4.5000 114.30MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.4330
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 1.50°
