  • INGERSOLL 1KJ1G-1502281R02 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 4 Flute Coolant 0.433 Max DOC 4.500 OAL

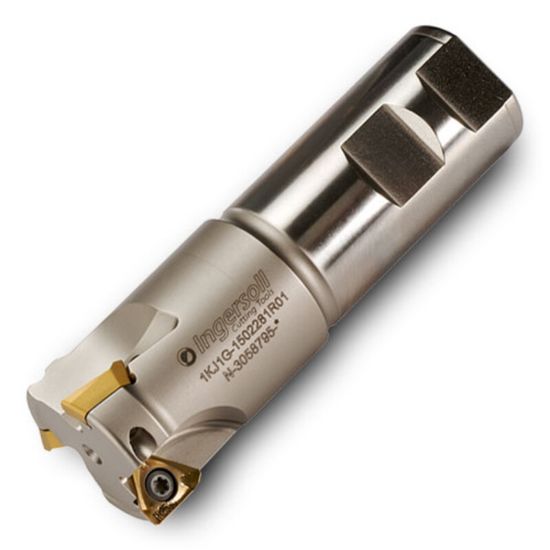

Picture of INGERSOLL 1KJ1G-1502281R02 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 4 Flute Coolant 0.433 Max DOC 4.500 OAL

INGERSOLL 1KJ1G-1502281R02 Milling Cutter 90.0° 1.500 Cylindrical 1.2500 4 Flute Coolant 0.433 Max DOC 4.500 OAL

ANSI: 1KJ1G-1502281R02

ISO: 1KJ1G-1502281R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031399
Delivery date: 3-5 days
$472.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Package Size 1
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Depth Of Cut Max 0.4330
Flutes/Inserts 4
Cut Dia Min 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.80°
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
