  • INGERSOLL 1KJ1G-1202281R02 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.433 Max DOC 4.500 OAL

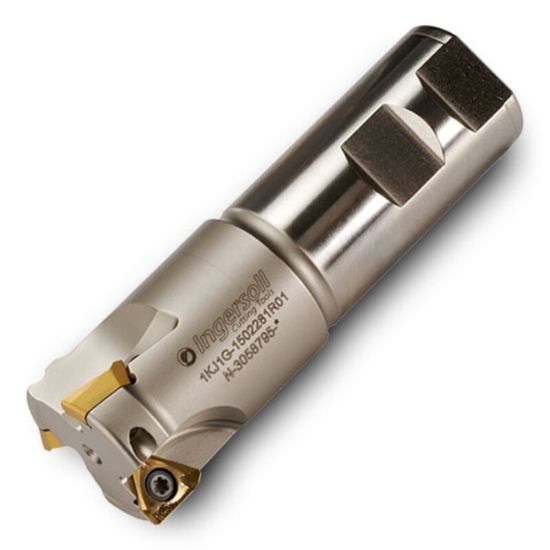

Picture of INGERSOLL 1KJ1G-1202281R02 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.433 Max DOC 4.500 OAL

INGERSOLL 1KJ1G-1202281R02 Milling Cutter 90.0° 1.250 Cylindrical 1.2500 3 Flute Coolant 0.433 Max DOC 4.500 OAL

ANSI: 1KJ1G-1202281R02

ISO: 1KJ1G-1202281R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031380
Delivery date: 3-5 days
$378.93

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Side Milling, Ramp Milling, Slot Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing, Finishing, Semi Finishing
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 10
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.4330
Cut Dia Min 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 2.30°
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
