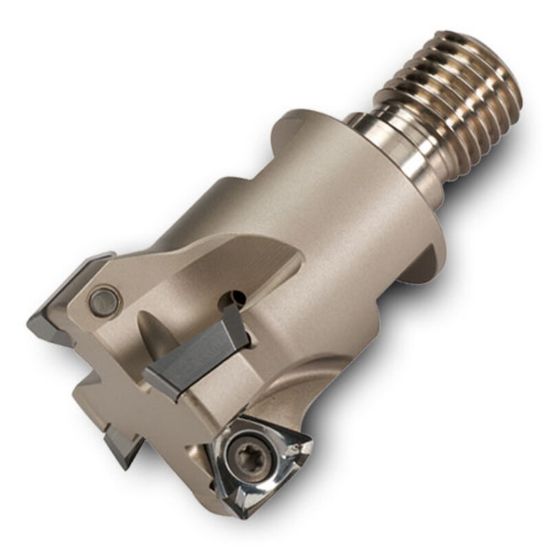

Picture of INGERSOLL 1KJ1G-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 3 Flute Coolant 0.433 Max DOC

INGERSOLL 1KJ1G-12017X8R01 Milling Cutter 90.0° 1.250 Screw M16 3 Flute Coolant 0.433 Max DOC

ANSI: 1KJ1G-12017X8R01

ISO: 1KJ1G-12017X8R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031536
Delivery date: 3-5 days
$378.93

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert Type Positive
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.4330
Insert Size Ic 10
Flutes/Inserts 3
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Max Ramp Angle 2.30°
