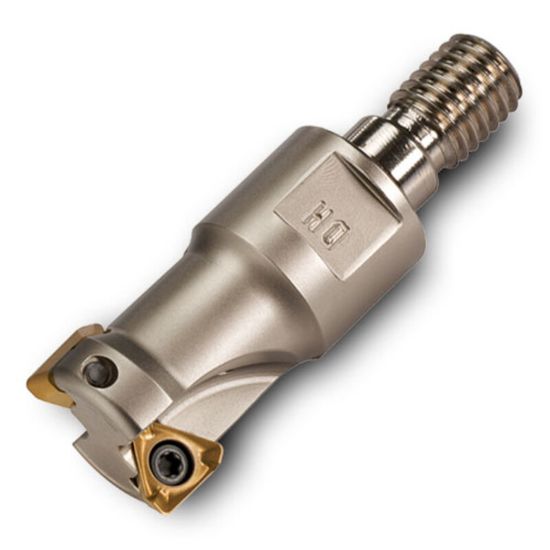

Picture of INGERSOLL 1KJ1D035043X8R00 Milling Cutter 90.0° 1.378 Screw M16 5 Flute Coolant 0.2756 Max DOC

INGERSOLL 1KJ1D035043X8R00 Milling Cutter 90.0° 1.378 Screw M16 5 Flute Coolant 0.2756 Max DOC

ANSI: 1KJ1D035043X8R00

ISO: 1KJ1D035043X8R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3057137
Delivery date: 3-5 days
$541.33
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Pocket Milling, Side Milling, Face Milling
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing, Finishing
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Size M16
Depth Of Cut Max 0.2756
Cutter Dia 1.3780 35.00MM
Insert Size Ic 6
Cut Dia Min 1.3780 35.00MM
Machine Side Connection Type Screw On
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Insert Style TH
Max Ramp Angle 1.60°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
