  • INGERSOLL 1KJ1D025030W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 3 Flute Coolant 0.2756 Max DOC 3.937 OAL

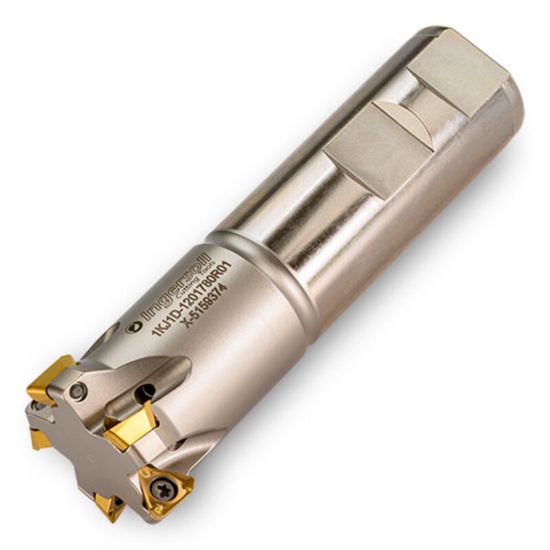

Picture of INGERSOLL 1KJ1D025030W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 3 Flute Coolant 0.2756 Max DOC 3.937 OAL

INGERSOLL 1KJ1D025030W5R00 Milling Cutter 90.0° 0.984 Cylindrical 0.9843 3 Flute Coolant 0.2756 Max DOC 3.937 OAL

ANSI: 1KJ1D025030W5R00

ISO: 1KJ1D025030W5R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031295
Delivery date: 3-5 days
$384.53
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Slot Milling, Face Milling, Ramp Milling, Side Milling
Shipping State Illinois
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 3.9370 100.00MM
Depth Of Cut Max 0.2756
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 3
Insert Size Ic 6
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 2.80°
Coolant Thru Yes
Insert Style TH
