  • INGERSOLL 1KJ1D020025W4R00 Milling Cutter 90.0° 0.787 Cylindrical 0.7874 2 Flute Coolant 0.2756 Max DOC 3.543 OAL

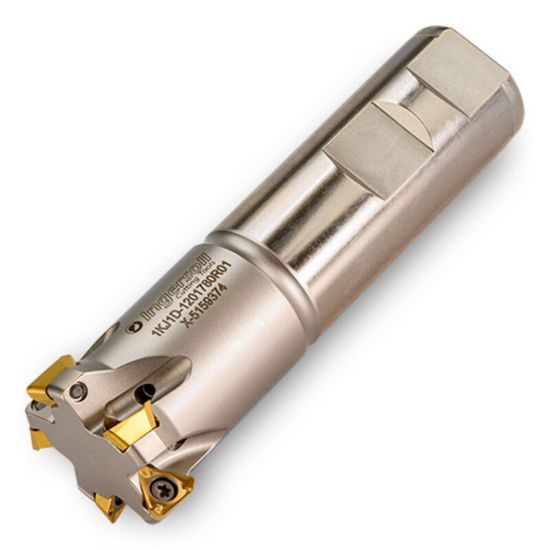

Picture of INGERSOLL 1KJ1D020025W4R00 Milling Cutter 90.0° 0.787 Cylindrical 0.7874 2 Flute Coolant 0.2756 Max DOC 3.543 OAL

INGERSOLL 1KJ1D020025W4R00 Milling Cutter 90.0° 0.787 Cylindrical 0.7874 2 Flute Coolant 0.2756 Max DOC 3.543 OAL

ANSI: 1KJ1D020025W4R00

ISO: 1KJ1D020025W4R00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031293
Delivery date: 3-5 days
$316.40
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Depth Of Cut Max 0.2756
Machine Side Connection Type Cylindrical
Overall Len 3.5433 90.00MM
Insert Size Ic 6
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 2
Cut Dia Min 0.7870 19.99MM
Tool Material Steel
Cutting & Machining Properties
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 3.30°
Coolant Thru Yes
