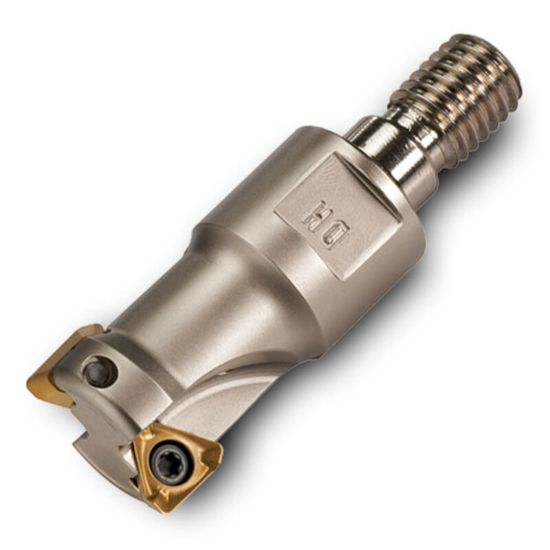

Picture of INGERSOLL 1KJ1D-12017X8R02 Milling Cutter 90.0° 1.250 Screw M16 5 Flute Coolant 0.275 Max DOC

INGERSOLL 1KJ1D-12017X8R02 Milling Cutter 90.0° 1.250 Screw M16 5 Flute Coolant 0.275 Max DOC

ANSI: 1KJ1D-12017X8R02

ISO: 1KJ1D-12017X8R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031529
Delivery date: 3-5 days
$416.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.2750
Tool Material Steel
Flutes/Inserts 5
Machine Side Connection Size M16
Machine Side Connection Type Screw On
Insert Size Ic 6
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
Max Ramp Angle 1.50°
