  • INGERSOLL 1KJ1D-1201780R01 Milling Cutter 90.0° 1.250 Cylindrical 1.0000 5 Flute Coolant 0.275 Max DOC 4.000 OAL

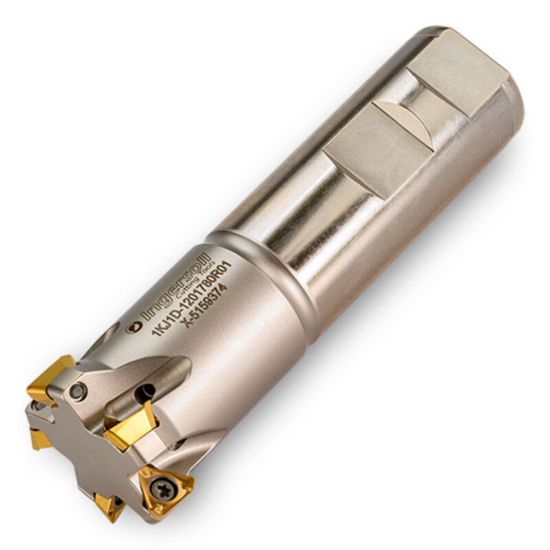

Picture of INGERSOLL 1KJ1D-1201780R01 Milling Cutter 90.0° 1.250 Cylindrical 1.0000 5 Flute Coolant 0.275 Max DOC 4.000 OAL

INGERSOLL 1KJ1D-1201780R01 Milling Cutter 90.0° 1.250 Cylindrical 1.0000 5 Flute Coolant 0.275 Max DOC 4.000 OAL

ANSI: 1KJ1D-1201780R01

ISO: 1KJ1D-1201780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031445
Delivery date: 3-5 days
$447.07

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Application Face Milling, Side Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.2750
Flutes/Inserts 5
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 6
Cut Dia Min 1.2500 31.75MM - 1-1/4
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
Max Ramp Angle 1.50°
