  • INGERSOLL 1KJ1D-1003784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.275 Max DOC 6.000 OAL

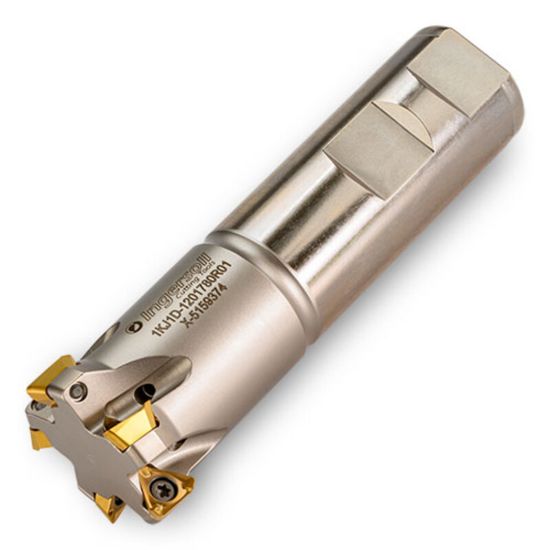

Picture of INGERSOLL 1KJ1D-1003784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.275 Max DOC 6.000 OAL

INGERSOLL 1KJ1D-1003784R01 Milling Cutter 90.0° 1.000 Weldon 0.7500 3 Flute Coolant 0.275 Max DOC 6.000 OAL

ANSI: 1KJ1D-1003784R01

ISO: 1KJ1D-1003784R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031461
Delivery date: 3-5 days
$406.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Pocket Milling, Ramp Milling, Slot Milling, Face Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Overall Len 6.0000 152.40MM
Depth Of Cut Max 0.2750
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 6
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style TH
Coolant Thru Yes
Max Ramp Angle 2.10°
Insert Shape/Cutter Pocket Shape Triangle
