  • INGERSOLL 1KJ1D-1003780R01 Milling Cutter 90.0° 1.000 Shell Arbor 1.0000 3 Flute Coolant 0.275 Max DOC 6.000 OAL

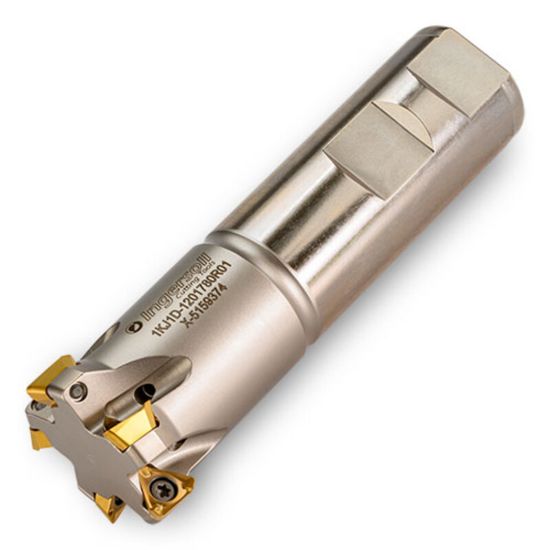

Picture of INGERSOLL 1KJ1D-1003780R01 Milling Cutter 90.0° 1.000 Shell Arbor 1.0000 3 Flute Coolant 0.275 Max DOC 6.000 OAL

INGERSOLL 1KJ1D-1003780R01 Milling Cutter 90.0° 1.000 Shell Arbor 1.0000 3 Flute Coolant 0.275 Max DOC 6.000 OAL

ANSI: 1KJ1D-1003780R01

ISO: 1KJ1D-1003780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2900868
Delivery date: 3-5 days
$406.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.2750
Flutes/Inserts 3
Insert Size Ic 6
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 2.10°
Insert Style TH
Coolant Thru Yes
