  • INGERSOLL 1KJ1D-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.275 Max DOC 4.000 OAL

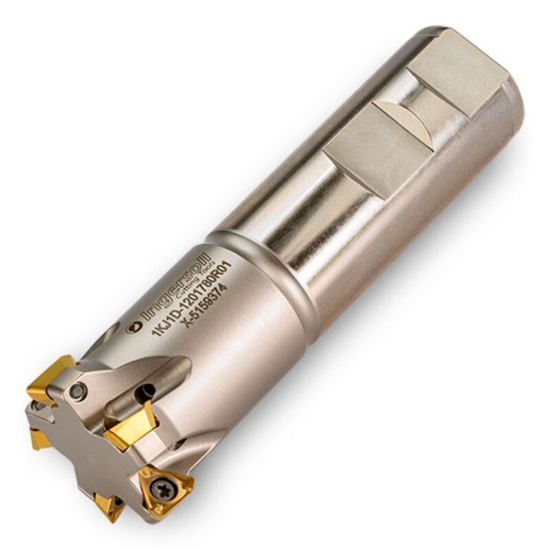

Picture of INGERSOLL 1KJ1D-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.275 Max DOC 4.000 OAL

INGERSOLL 1KJ1D-1001780R01 Milling Cutter 90.0° 1.000 Cylindrical 1.0000 3 Flute Coolant 0.275 Max DOC 4.000 OAL

ANSI: 1KJ1D-1001780R01

ISO: 1KJ1D-1001780R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031462
Delivery date: 3-5 days
$384.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.2750
Overall Len 4.0000 101.60MM
Insert Size Ic 6
Cutting & Machining Properties
Max Ramp Angle 2.10°
Insert Style TH
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
