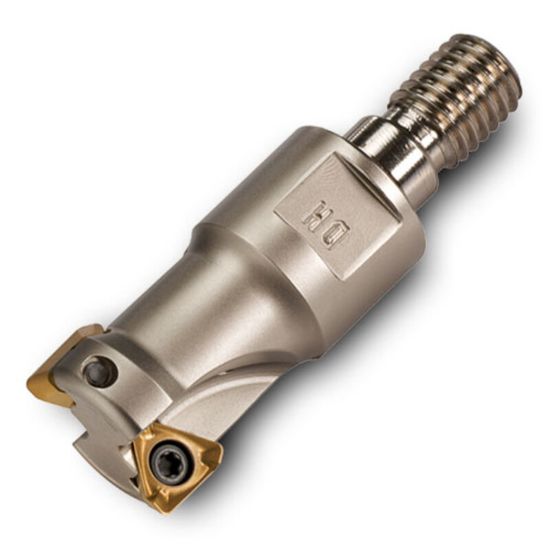

Picture of INGERSOLL 1KJ1D-10015X7R02 Milling Cutter 90.0° 1.000 Screw M12 3 Flute Coolant 0.275 Max DOC

INGERSOLL 1KJ1D-10015X7R02 Milling Cutter 90.0° 1.000 Screw M12 3 Flute Coolant 0.275 Max DOC

ANSI: 1KJ1D-10015X7R02

ISO: 1KJ1D-10015X7R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031516
Delivery date: 3-5 days
$341.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Roughing, Semi Finishing
Insert Type Positive
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 6
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Flutes/Inserts 3
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.2750
Cutting & Machining Properties
Max Ramp Angle 2.10°
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Insert Style TH
