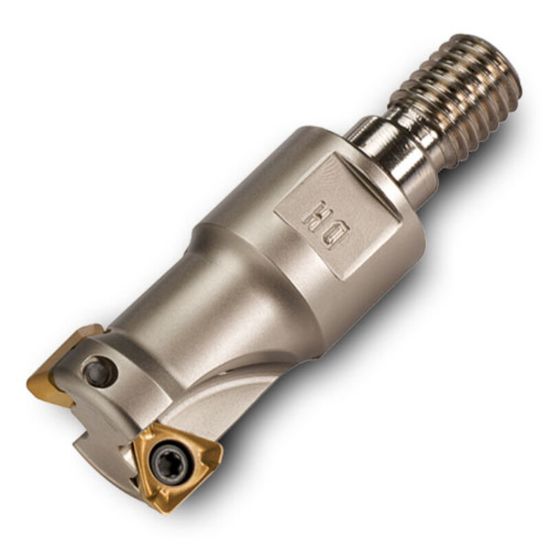

Picture of INGERSOLL 1KJ1D-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 2 Flute Coolant 0.275 Max DOC

INGERSOLL 1KJ1D-10015X7R01 Milling Cutter 90.0° 1.000 Screw M12 2 Flute Coolant 0.275 Max DOC

ANSI: 1KJ1D-10015X7R01

ISO: 1KJ1D-10015X7R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3031515
Delivery date: 3-5 days
$356.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 6
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Depth Of Cut Max 0.2750
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Max Ramp Angle 2.10°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TH
